3D Construction Printer

3D PRINTER
COSMOS PRO

3D Precast Concrete Construction System

COSMOS PRO

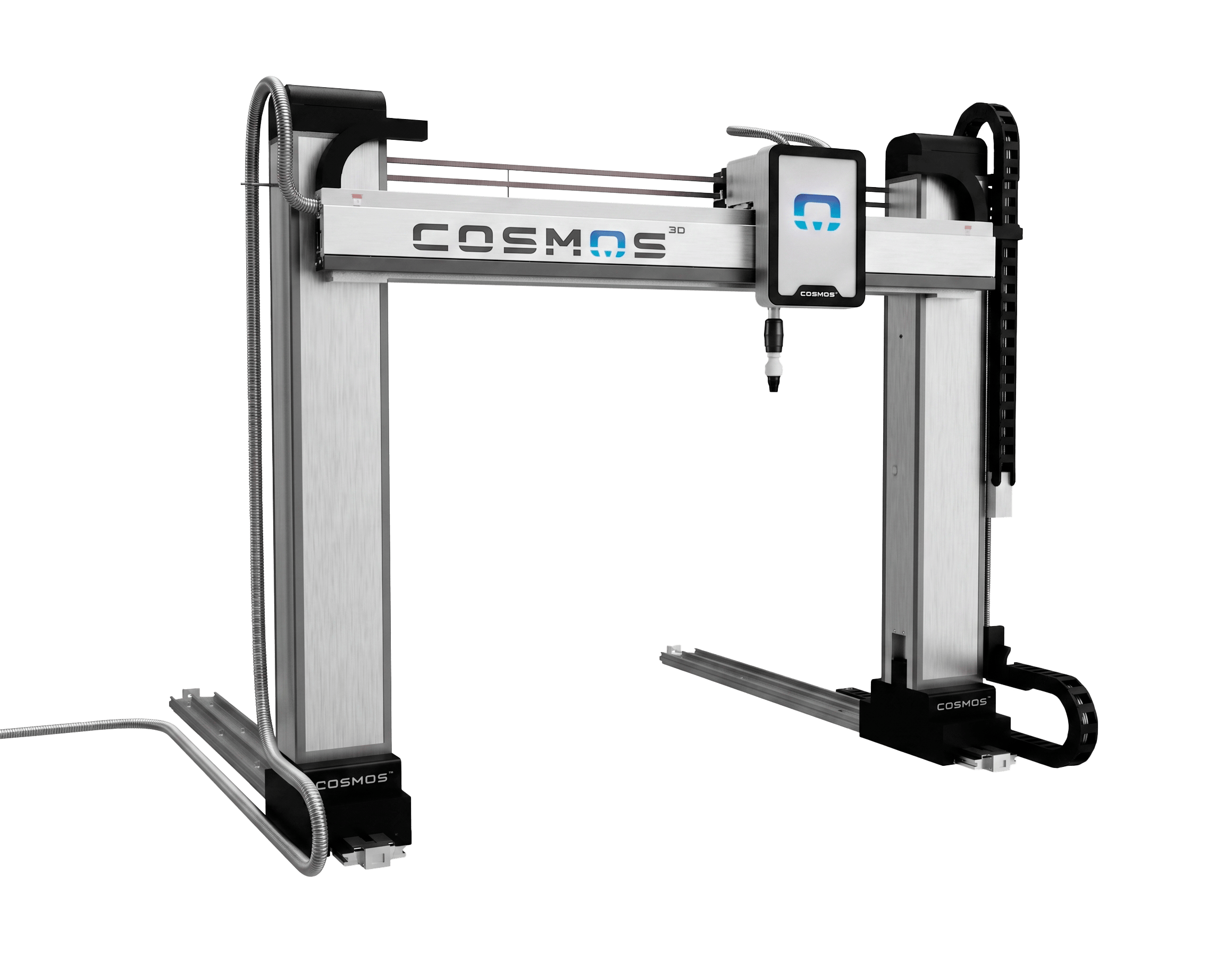

The COSMOS PRO 3D construction printer drives the industrialization of construction thanks to its advanced system for producing 3D prefabricated concrete and construction modules, with the possibility of building directly on pallets.

The COSMOS PRO combines concrete 3D printing technology, high-precision robotics, proprietary software, and an intelligent mixing and pumping station, enabling the manufacture of structural modules ready for transport and installation at their final destination.

Designed for industrialized construction companies, prefabricated manufacturers, and developers looking to reduce costs, time, and material waste.

It is also a highly valued system in universities and research centers for materials related to construction and the future of the sector.

3D Concrete Printer for Industrialized Construction

A professional 3D additive manufacturing solution for the construction industry, optimized to produce:

3D concrete structure modules

Custom prefabricated elements

Modular homes

Concrete street furniture

Complex architectural components

Thanks to its configuration, the COSMOS PRO printer allows direct printing on pallets, facilitating transport to the site and drastically reducing subsequent handling.

Construction of 3D Modules Directly on Pallets

One of the major competitive advantages of COSMOS PRO is its 3D construction capacity optimized for logistics production with a maximum printing height of 1.8 m.

This configuration allows for the manufacture of 3D concrete modules directly on industrial pallets, facilitating:

Safe transport to the final destination

Reduction in construction time

Elimination of intermediate handling stages

Greater efficiency in modular projects

Ideal for companies committed to industrialized modular construction and factory production.

State-of-the-Art Concrete 3D Printing Technology

The COSMOS PRO 3D Printer integrates:

High-precision industrial robotics.
Advanced material flow control system.
Large-format additive manufacturing technology.
Energy optimization and waste reduction.

Cada componente ha sido diseñado para ofrecer:

The COSMOS PRO allows you to manufacture sturdy, customized structures that are ready for immediate transport. It is designed to maximize productivity in industrial environments.

Key Technical Specifications

Maximum printing area: 5 m length x 3 m width x 1,8 m height
Maximum printing speed: Up to 300 mm/s
Adjustable layer height:From 5 to 40 mm
Cover hook: From 30 to 150 mm
Material flow: Up to 3.6 m³/h
Maximum aggregate size: Up to 4 mm

Motion and remote monitoring system: PLC with SIEMENS servos and 4G LTE cloud connection.
Connectivity: WIFI or LAN
Installation time: 8 hours
Dismantling time: 4 hours
Operators required: 2 workers

These capabilities enable the efficient production of large-format 3D concrete prefabricated elements, with complete design freedom and structural optimization.

Smart Mixing and Pumping Station

Sistema Duo-Mix Connect 3DCP+

The COSMOS PRO incorporates a fully integrated mixing and pumping station that ensures a continuous and accurate supply of material.

The system automatically adjusts:

Mix proportions
Advanced material flow control system
Weather conditions
Specific project requirements

Esto asegura:

The perfect synchronization between station and printer allows you to work with standard materials or advanced technical formulations.

Professional 3D Printing Software

COSMOS 3D Slicer

The COSMOS 3D Slicer is proprietary software developed for the comprehensive management of 3D concrete printing.

It converts CAD models into precise instructions for the COSMOS PRO, optimizing each manufacturing parameter.

Advantages of COSMOS 3D Slicer Software

It allows you to plan, simulate, and execute industrialized construction projects with maximum precision and efficiency.
